DRIVERS
Forzlux LED Drivers are engineered for optimized thermal performance with minimum size case for a specific lighting task or application. Our drivers are designed to meet OEM luminaire manufacturer’s cost targets while providing simple installation for a variety of luminaire sizes. Drivers are available in a wide variety of configurations and applications: low voltage, high voltage, constant current, constant voltage, non-dimming, triac (incandescent) and 0-10V dimming.
Constant current versions are recommended for self-contained luminaires and maximum efficiency applications. Constant voltage versions are ideal for long-run and/or linear applications such as coves.
For assistance, please click on this email: sales@forzlux.com
Sorted by TYPICAL DIMENSIONS, SMALLEST TO LARGEST
Constant Current unless otherwise specified
Photos not to scale, overall dimensions specified
PS12-350C-DIM-R
12W, 120VAC
150mA, 250mA and 350mA, 17-34V
TRIAC DIM
2” diameter x 0.89”
PS5-500C-DUALDIM-UNV-PP
5W, 120-277VAC
500mA, 5-10V
TRIAC/ELV, 0-10V DIM, ClassP
1.025” x 1.145” x 2.55”
PS6-350C-DUALDIM-UNV-PP
6W, 120-277VAC
350mA, 8-17V
TRIAC/ELV, 0-10V DIM, ClassP
1.025” x 1.145” x 2.55”
PS9-500C-DUALDIM-UNV-PP
9W, 120-277VAC
500mA, 8.5-17V
TRIAC/ELV, 0-10V DIM, ClassP
1.025” x 1.145” x 2.55”

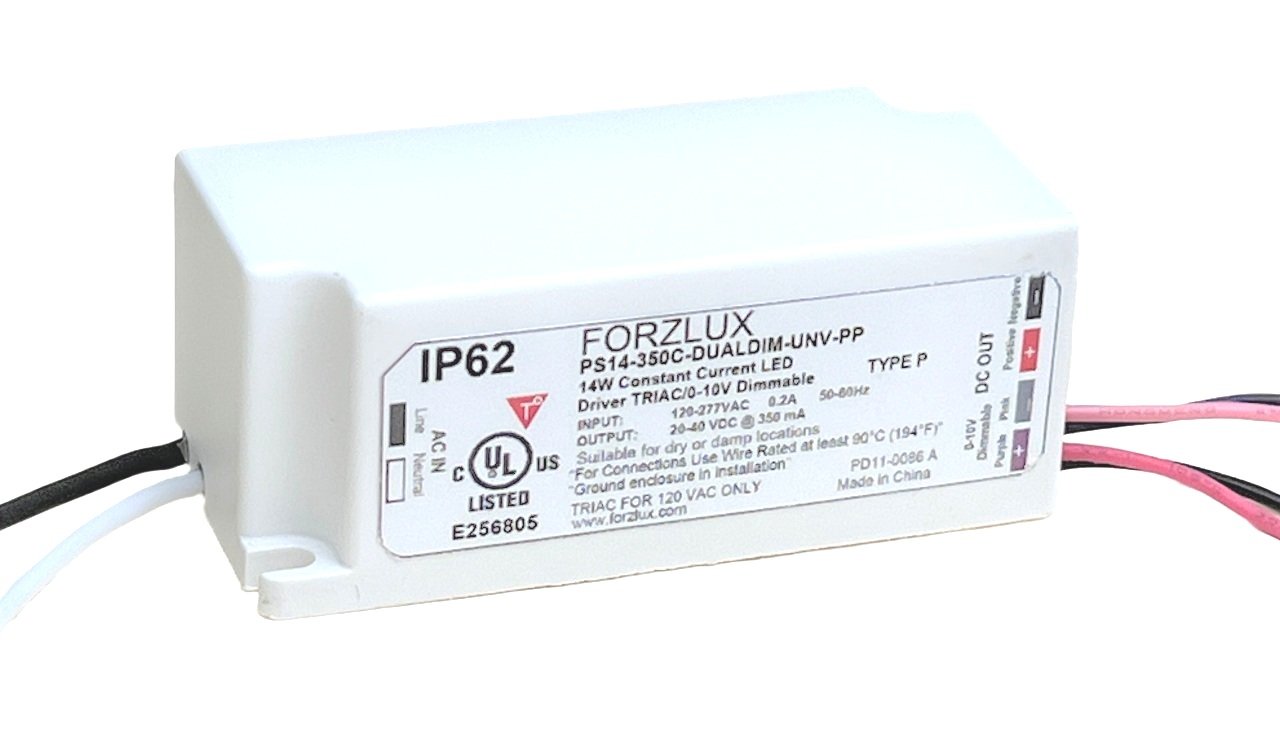

PS14-350C-DUALDIM-UNV-PP
14W, 120-277VAC
150mA, 250mA and 350mA, 20-40V
TRIAC/ELV, 0-10V DIM, ClassP
1.025” x 1.145” x 2.55”
PS14-1400C-DUALDIM-UNV-P
14W, 120-277VAC
1400mA, 5-10V
TRIAC/ELV, 0-10V DIM, ClassP
1.161” x 1.575” x 3.425”
PS18-550C-DUALDIM-UNV-P
18W, 120-277VAC
550mA, 16-33V
TRIAC, 0-10V DIM, ClassP
1.161” x 1.575” x 3.425”

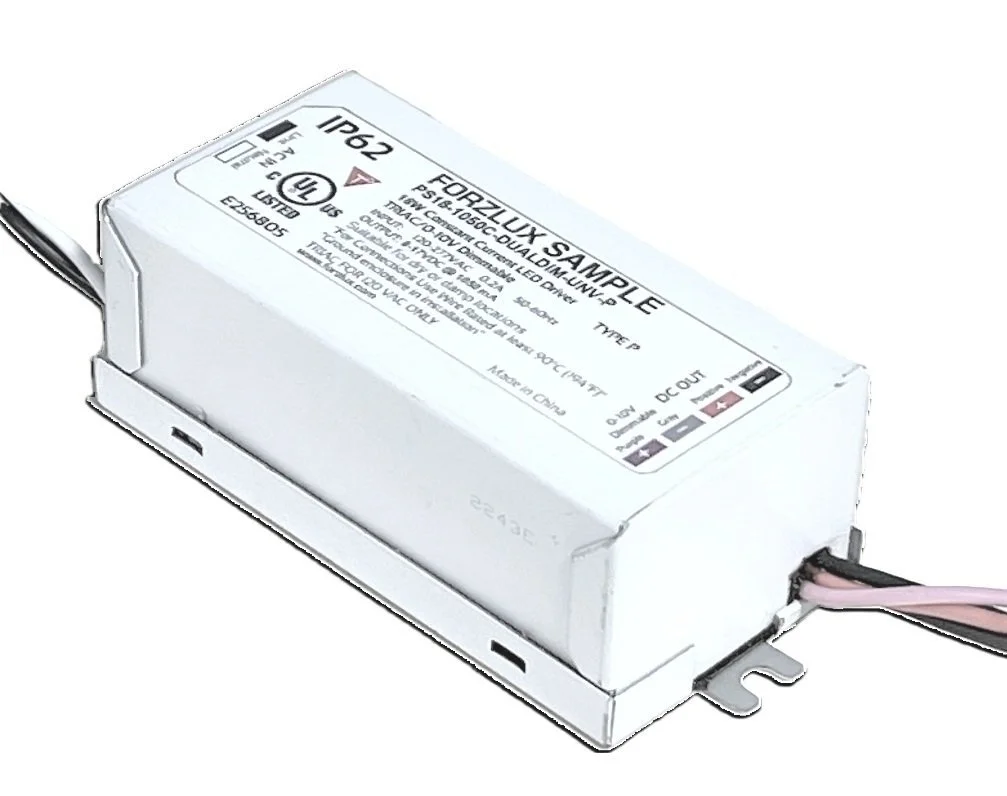

PS18-1050C-DUALDIM-UNV-P
18W, 120-277VAC
1050mA, 8-17V
TRIAC, 0-10V DIM, ClassP
1.161” x 1.575” x 3.425”
PS20-500C-DUALDIM-UNV-DONUT-P
20W, 120-277VAC
250mA, 350mA and 500mA, 20-40V
TRIAC, 0-10V DIM, ClassP
2.95” diameter x 1.042”, 0.86” center hole
PS21-450C-DUALDIM-UNV-P
21W, 120-277VAC
450mA, 23-46V
TRIAC, 0-10V DIM, ClassP
1.135” x 1.51” x 3.45”
PS23-700C-TRIAC-UNV
23W, 120-277VAC
700mA, 16-32V or 420mA and 500mA, 20-40V
TRIAC DIM
1.18” x 1.77” x 3.03”
PS24-500C-TRIAC-UNV-P
24W, 120-277VAC
500mA, 24-48V
TRIAC/ELV DIM, ClassP
1.135” x 1.51” x 3.45”
PS25-48V-UNV
25W, 120-277VAC
CONSTANT VOLTAGE FOR COB
48V, 520mA NON-DIM
0.87” x 1.54” x 3.62”
PS29-1600C-DUALDIM-UNV-P
29W, 120-277VAC
1600mA, 9-18V
TRIAC/ELV, 0-10V DIM, ClassP
1.161” x 1.575” x 3.425”
PS28-700C-DUALDIM-UNV-LP-P
28W, 120-277VAC
350mA, 500mA, and 700mA, 20-40V
TRIAC, 0-10V DIM, ClassP
0.73” x 1.33” x 7.87”
PS50-1050C-DUALDIM-UNV-P
50W, 120-277VAC
1050mA, 25-48V
TRIAC, 0-10V DIM, ClassP
1.07” x 2.4” x 5”
PS98-2450C-DUALDIM-UNV-P
98W, 120-277VAC
1050mA, 1400mA, 1750mA, 2100mA, and 2450mA, 20-40V
TRIAC, 0-10V DIM, ClassP
1.19” x 1.75” x 7.24”
